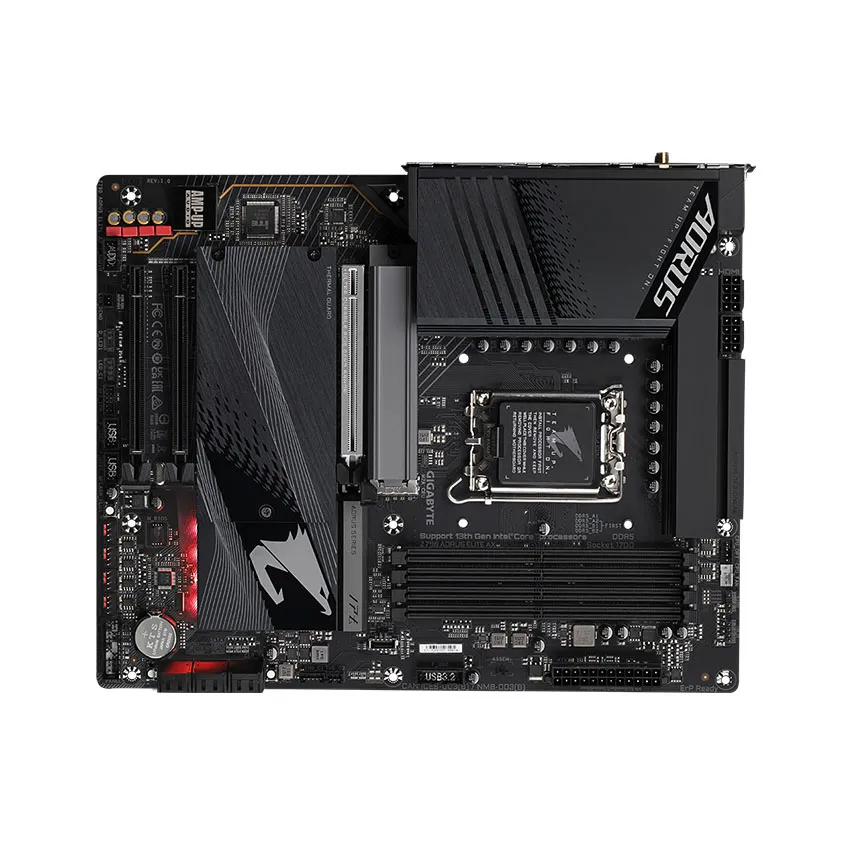

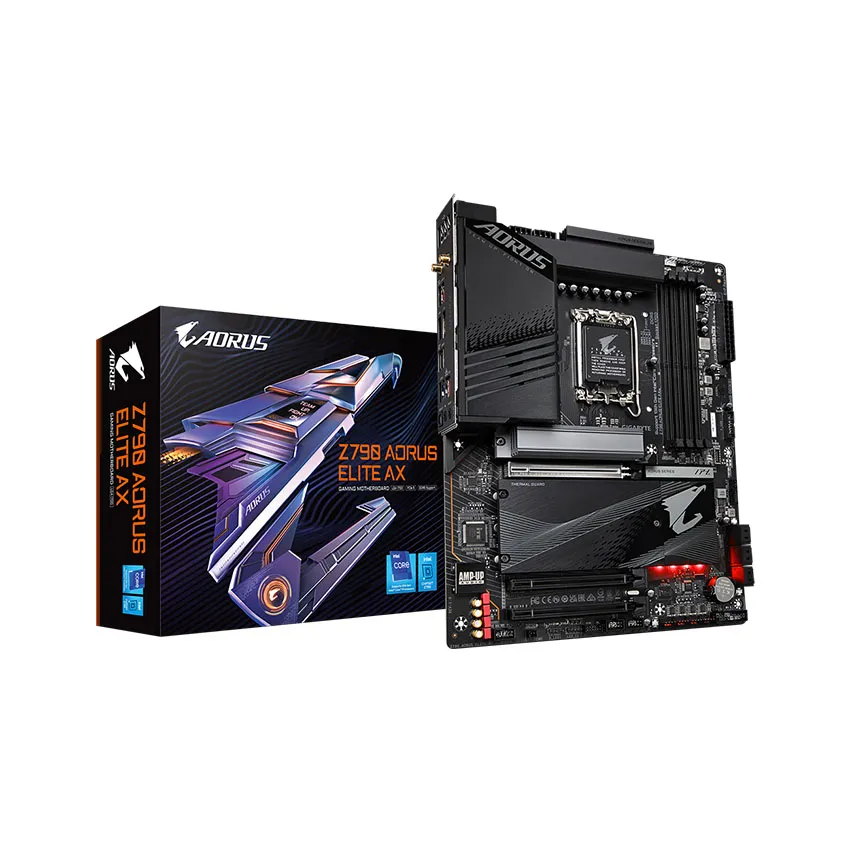

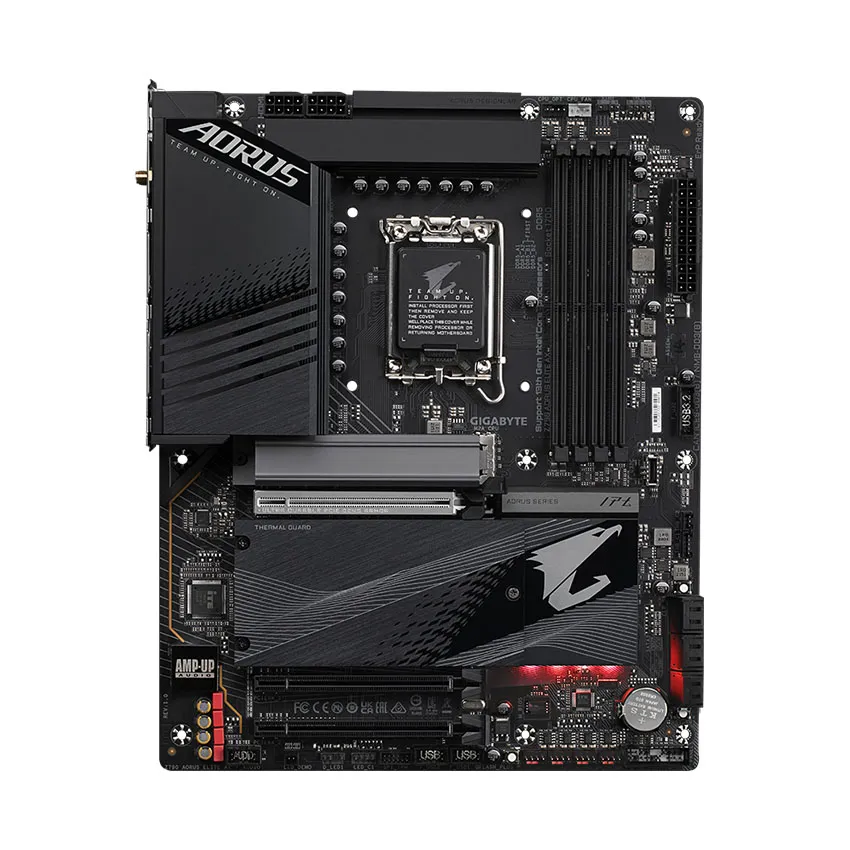

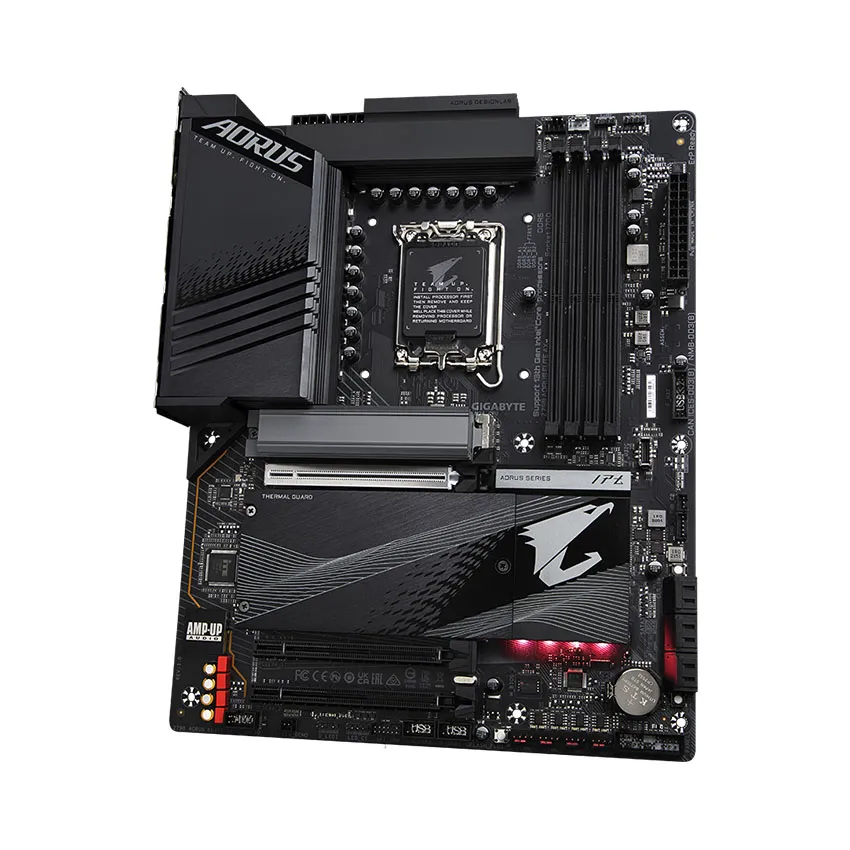

Bo mạch chủ Gigabyte Z790 AORUS ELITE AX DDR5

5.950.000₫

Bảo hành: 36 tháng

⭐ ANC cam kết cung cấp chế độ bảo hành tốt nhất cho khách hàng của mình⭐

Quà tặng / Khuyến mãi

liên hệ

Chính sách bán hàng

Cam kết chính hãng 100%

Freeship nội thành, COD toàn quốc

Sửa chữa đồng giá 150k

Chế độ bảo hành tốt nhất cho khách hàng

Hỗ trợ trực tuyến Hotline: 0921276789

Kinh doanh: 0921276789 (Việt)

Kinh doanh: 0964111678 (Huy)

Kinh doanh: 0354151545 (Hậu)

Kỹ thuật: 0963542038 (Phúc)

Email: annhien.anc@gmail.com

Mô tả

Bo mạch chủ Gigabyte Z790 AORUS ELITE AX DDR5

vitinhannhien.com

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	Z790 AORUS ELITE AX
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700
Chipset	Z790
RAM hỗ trợ	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices * Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

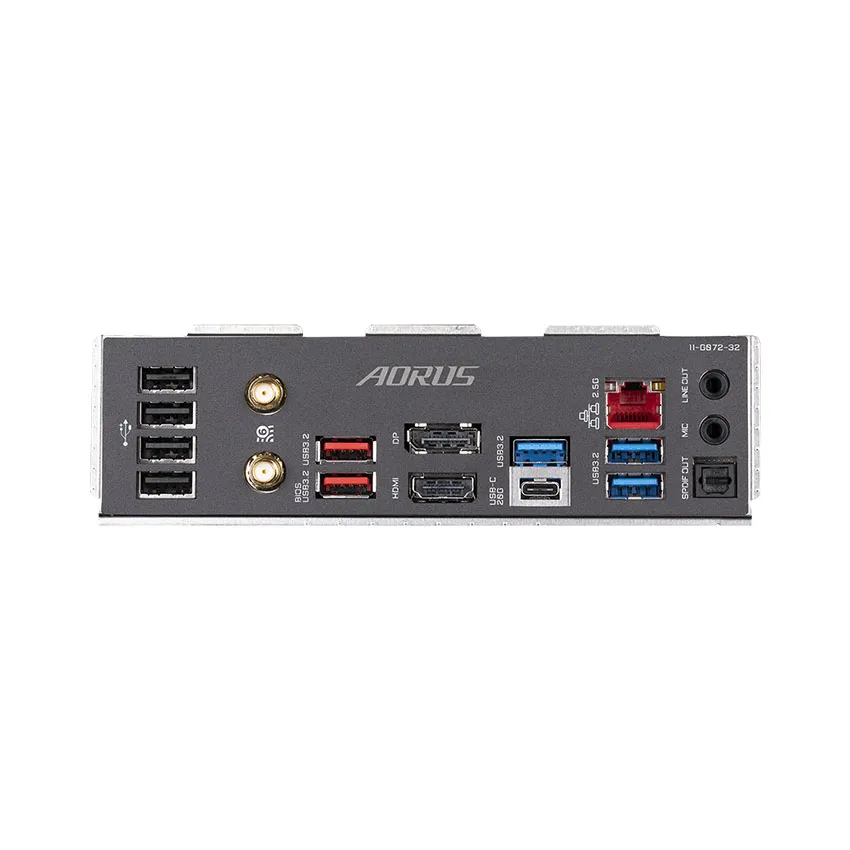

Cổng kết nối (Back Panel)	1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS /BLUETOOTH	Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.

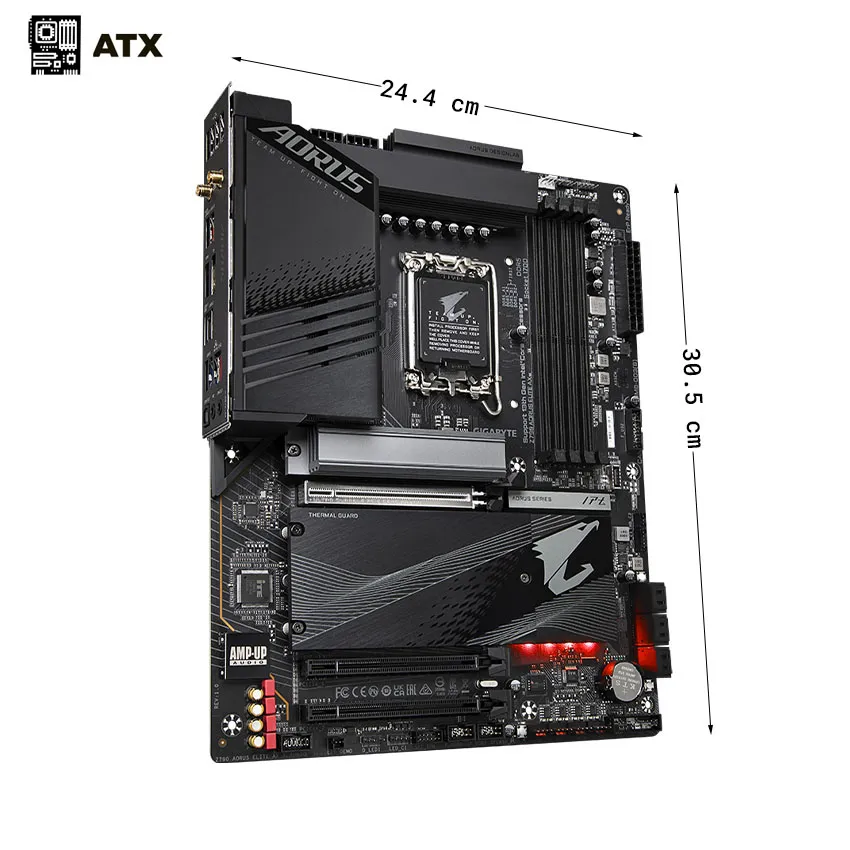

Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
